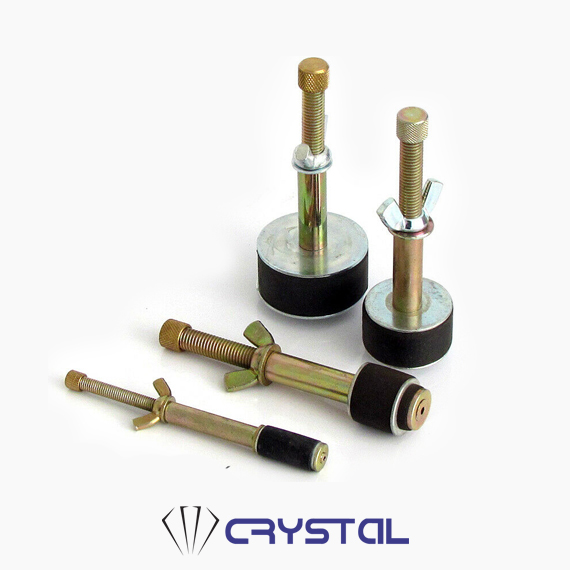

MDPE/HDPE Pipe Test Plug
Mechanical test plug for small-bore MDPE and HDPE pipes. Select the plug by actual internal diameter, test medium, and the size-specific back-pressure rating.
Key Features
- Small-bore pipe testing
- Select by actual pipe internal diameter rather than nominal size alone.
- Check the size-specific back-pressure limit before testing.
Technical Data & Dimensions
Published specifications vary by size and configuration. Confirm the approved datasheet for the exact model before ordering or testing.
| Pipe Size Internal Nominal Diameter | Will Fit Pipes With Internal Diameter | Minimum Insertion into Pipe | Overall length | Diameter of waterway | Approx. Weight |
| 12mm / 0.5" | 12mm-16mm | 66mm | 110mm | 4mm | 40gm |
| 19mm / 0.75" | 19mm-26mm | 66mm | 110mm | 6mm | 50gm |
| 25mm / 1" | 25mm-33mm | 66mm | 110mm | 6mm | 70gm |
| 32mm / 1.25" | 31mm-39mm | 66mm | 110mm | 6mm | 90gm |
| 40mm / 1.5" | 38mm-48mm | 66mm | 110mm | 6mm | 130gm |
Selection & Installation
Confirm the approved model, actual pipe dimensions, medium compatibility, temperature, and pressure limits before use. Follow the manufacturer-approved installation procedure, use the specified restraint, and fully depressurize before removal.
Request a Quotation
Send the product name, required quantity, pipe dimensions, test medium, pressure, and temperature. Our team will help confirm the appropriate configuration.
